Introdution

A laser land leveler is a sophisticated agricultural tool designed to level and grade land surfaces with unparalleled precision. It’s an innovative technology that uses a laser beam to guide the leveling process, ensuring that the land is perfectly even, sloped, and aligned for optimal water distribution, drainage, and crop growth.

Benefits

The use of laser land levelers offers numerous advantages, including

  • Improved Water Management: Reduced water waste and optimized irrigation.
  • Increased Crop Yields: Enhanced soil quality and better drainage.
  • Reduced Labor Costs: Faster and more accurate leveling process.
  • Enhanced Soil Conservation: Minimized soil erosion and nutrient loss.
arrow not foundExtendable Bucket

4 Tyres Model 540

Key Features

  • Four-Wheel Drive: Enables stable and precise movement on uneven terrain, ensuring accurate leveling.
  • Hydraulic or Mechanical Leveling: Adjusts the land surface to match the laser beam's reference plane.
  • High-Clearance Capability: Enables operation in rough or rocky terrain.
  • Adjustable Laser Plane: Allows for customized leveling and grading.
  • Automatic Leveling System: Continuously monitors and adjusts the land surface.
arrow not found4 Tyres Model 540

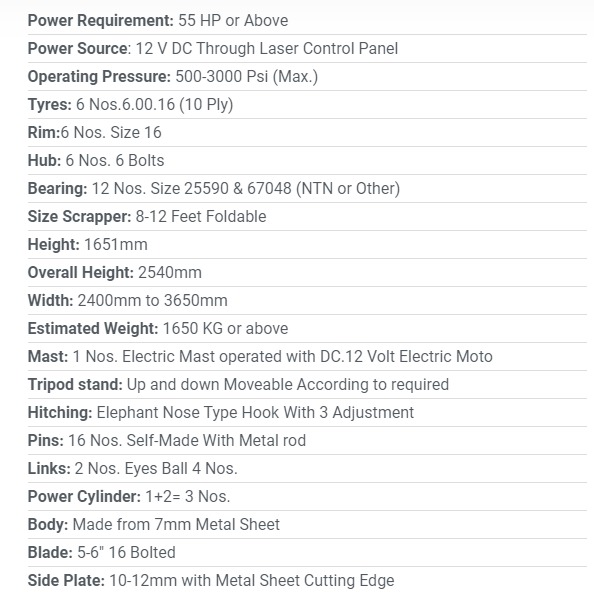

Specifications

Equipments

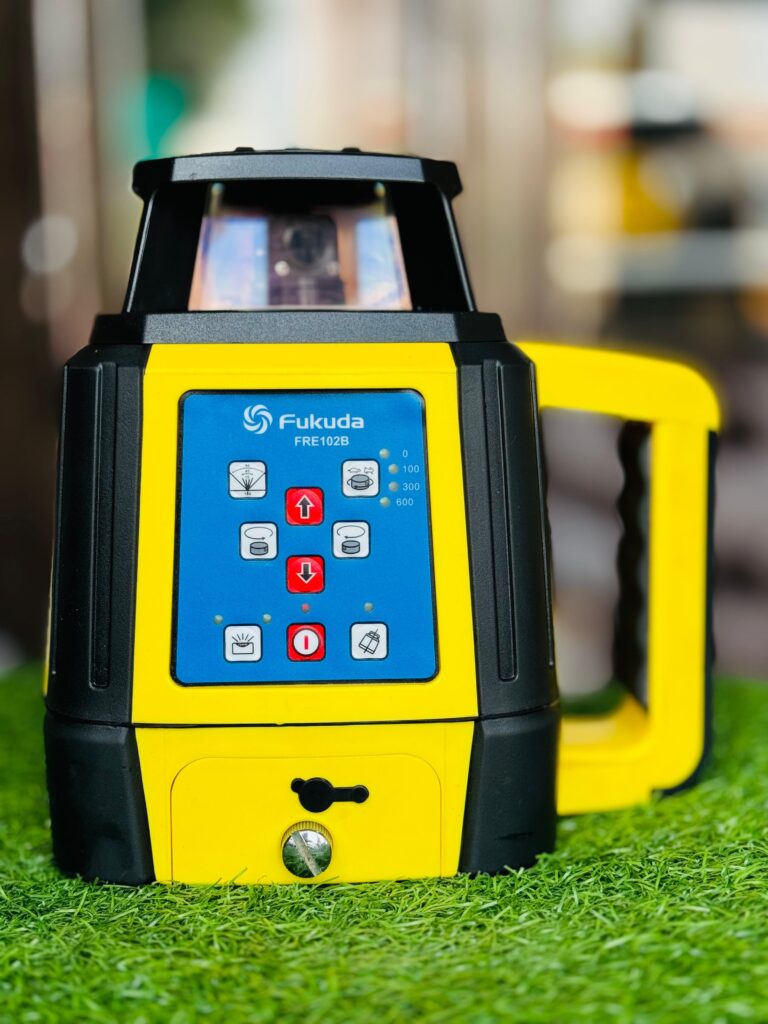

arrow not foundTransmitter

Specifications

  • Compensation range + 10 - 12 arc seconds
  • Protected rotational head with rooter assembly having 500-700 rpm speed capable of uniform 360 degree infrared visible/invisible LASER beam distribution.
  • Fail-safe provision of shut off beam in case unit setting is disturbed.
  • Minimum operating range 1000m (Radius)
  • Power source: Internal
  • Rechargeable battery with charging system capable of at least 15-72 hour of operation per charge with low charge warning light system.
  • External: 12-24 V DC
  • Water and dust proof (Ingress protection Rating IP rating IP 66-68)

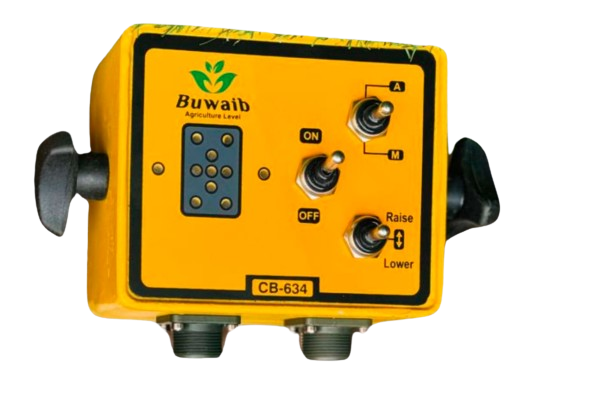

arrow not foundControl Panel Box

Specifications

  • Control: Automatic & manual.
  • Display system: Light indicators for minimum 3 grade position indications.
  • Operational Control: Power on/off indicator, on/off control switch.
  • Auto/manual switch and raise/lower switch Power source: 12-24 V DC.

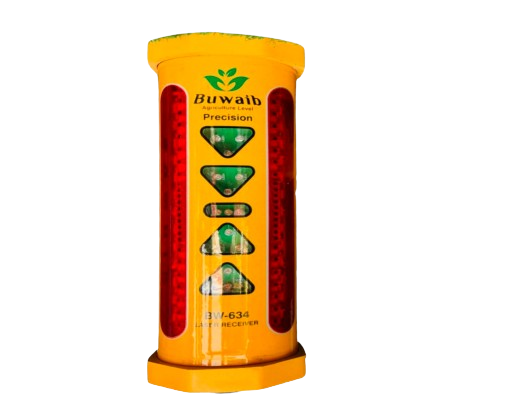

arrow not foundGrade Position Indication

Specifications

  • Grade position indication: Minimum three positions i.e. high, on grade, and low.
  • Sensing range:Vertical 180 to 210 mm
  • Beam detecting angle: 360 degrees Operating range: Minimum 300 m.
  • Accessories: Carrying case
  • Power Source: 12-24 V DC
arrow not foundTripod

Specifications

  • Capable for mounting LASER transmitter
  • Construction: Heavy duty / robust, folding
  • Elevating base: Power on/off indicator, on/off control switch.
  • Height: Minimum 3 meters with LASER transmitter
  • 5-meter adjustable rod with digital sensor

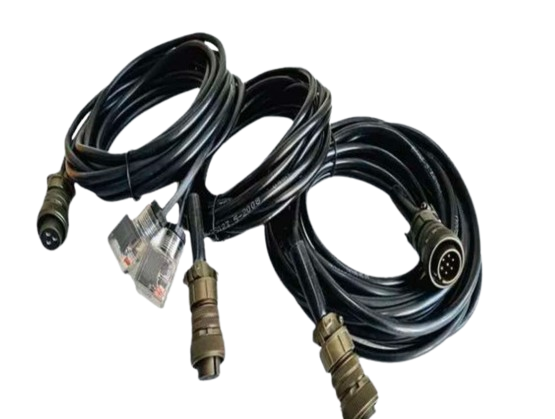

arrow not foundWire Set

Specifications

  • Power Cable: Current Rating: 10 Ampere
  • Insulation: 2 Core/PVC/flex black (56/0.3 mm)
  • Control to receiver cable: Current Rating: 2 Ampere
  • Insulation: 6 Core/PVC/flex black (30/0.25 mm)
  • Control to scraper cable: Current Rating: 6 Ampere
  • Insulation: 3 Core/PVC/flex black (30/0.25 mm)
