Introdution

A laser land leveler is a precision leveling system that uses laser technology to accurately level and grade land surfaces. It’s a versatile tool used in various industries, including agriculture, construction, landscaping, and sports field maintenance.

Benefits

The use of laser land levelers offers numerous advantages, including

  • Improved Productivity: Saves time and resources by achieving precise leveling quickly
  • Enhanced Accuracy: Ensures consistent and accurate results, reducing errors and rework..
  • Increased Crop Yields: In agriculture, precise leveling improves water management, drainage, and soil quality.
  • Better Site Preparation: In construction, accurate leveling ensures stable foundations and improved drainage

expandable bucket

An expandable bucket with six tires for a laser land leveler is a specialized attachment designed for heavy-duty leveling and grading applications. Here’s what you need to know:

6 Tyres Extendable Bucket

An expandable bucket with six tires for a laser land leveler is a specialized attachment designed for heavy-duty leveling and grading applications. Here’s what you need to know

Key Features:

  • Six Tires: Provides stability, flotation, and traction on various surfaces, including soft soil and sand.
  • Expandable Width: Adjusts to match different surface widths, typically between 8-12 feet.
  • Laser Receiver: Mounted on the bucket, it detects the laser beam and sends signals to the control system.
  • Hydraulic Controls: Adjusts the bucket's angle and tilt to match the laser beam, ensuring precise leveling.
  • Grade Indicator: Shows the operator the deviation from the desired grade, allowing for manual adjustments.
arrow not foundExtendable Laser Land Leveler

6 Tyres Model 660

Specifications

  • Power Requirement: 55 HP or Above
  • Power Source: 12 V DC Through Laser Control Panel
  • Operating Pressure: 500-3000 Psi (Max.)
  • Tyres: 6 Nos.6.00.16 (10 Ply)
  • Rim:6 Nos. Size 16
  • Hub: 6 Nos. 6 Bolts
  • Bearing: 12 Nos. Size 25590 & 67048 (NTN or Other)
  • Size Scrapper: 8-12 Feet Foldable
  • Height: 1651mm
  • Overall Height: 2540mm
  • Width: 2400mm to 3650mm
  • Estimated Weight: 1650 KG or above
  • Mast: 1 Nos. Electric Mast operated with DC.12 Volt Electric Moto
  • Tripod stand: Up and down Moveable According to required
  • Hitching: Elephant Nose Type Hook With 3 Adjustment
  • Pins: 16 Nos. Self-Made With Metal rod
  • Links: 2 Nos. Eyes Ball 4 Nos.
  • Power Cylinder: 1+2= 3 Nos.
  • Body: Made from 7mm Metal Sheet
  • Blade: 5-6" 16 Bolted
  • Side Plate: 10-12mm with Metal Sheet Cutting Edge

Equipments

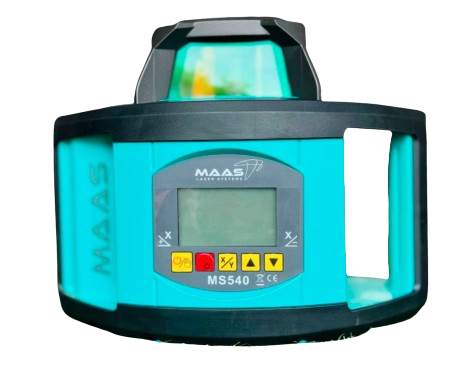

arrow not foundTransmitter

Specifications

  • Compensation range + 10 - 12 arc seconds
  • Protected rotational head with rooter assembly having 500-700 rpm speed capable of uniform 360 degree infrared visible/invisible LASER beam distribution.
  • Fail-safe provision of shut off beam in case unit setting is disturbed.
  • Minimum operating range 1000m (Radius)
  • Power source: Internal
  • Rechargeable battery with charging system capable of at least 15-72 hour of operation per charge with low charge warning light system.
  • External: 12-24 V DC
  • Water and dust proof (Ingress protection Rating IP rating IP 66-68)

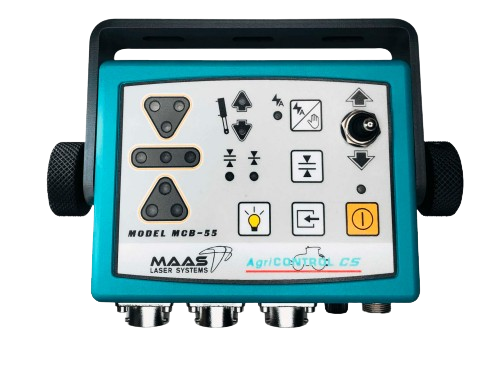

arrow not foundControl Panel Box

Specifications

  • Control: Automatic & manual.
  • Display system: Light indicators for minimum 3 grade position indications.
  • Operational Control: Power on/off indicator, on/off control switch.
  • Auto/manual switch and raise/lower switch Power source: 12-24 V DC.

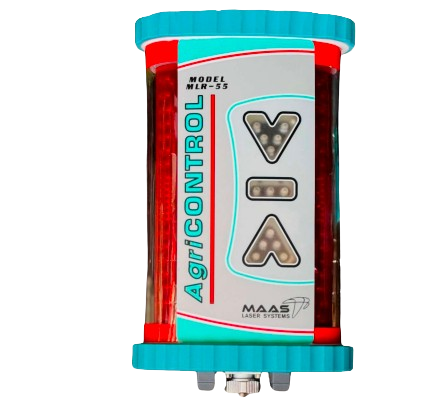

arrow not foundGrade Position Indication

Specifications

  • Grade position indication: Minimum three positions i.e. high, on grade, and low.
  • Sensing range:Vertical 180 to 210 mm
  • Beam detecting angle: 360 degrees Operating range: Minimum 300 m.
  • Accessories: Carrying case
  • Power Source: 12-24 V DC

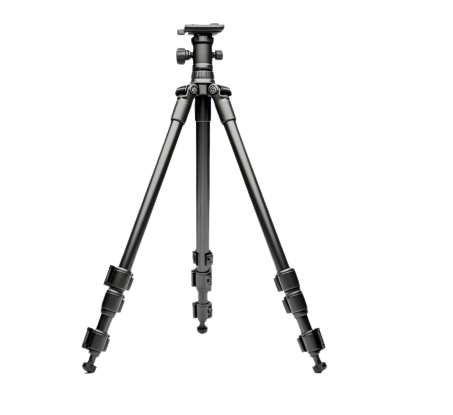

arrow not foundTripod

Specifications

  • Capable for mounting LASER transmitter
  • Construction: Heavy duty / robust, folding
  • Elevating base: Power on/off indicator, on/off control switch.
  • Height: Minimum 3 meters with LASER transmitter
  • 5-meter adjustable rod with digital sensor

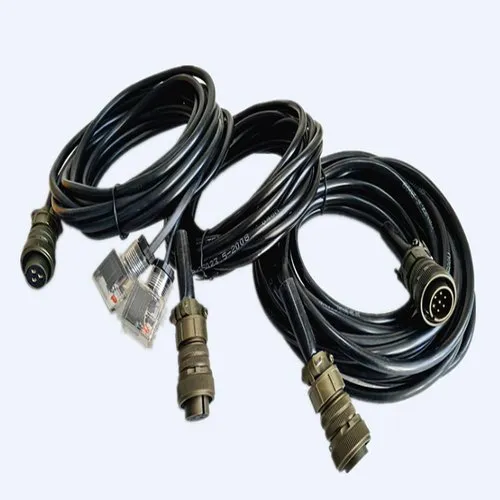

arrow not foundWire Set

Specifications

  • Power Cable: Current Rating: 10 Ampere
  • Insulation: 2 Core/PVC/flex black (56/0.3 mm)
  • Control to receiver cable: Current Rating: 2 Ampere
  • Insulation: 6 Core/PVC/flex black (30/0.25 mm)
  • Control to scraper cable: Current Rating: 6 Ampere
  • Insulation: 3 Core/PVC/flex black (30/0.25 mm)
