Laser Land Levelor Model 777

A Laser Bucket is a type of laser-guided leveling system used in agriculture for land leveling. It’s a versatile tool that attaches to a tractor or excavator bucket, enabling precise grading and leveling of surfaces.

Laser Land Levelor Model 777

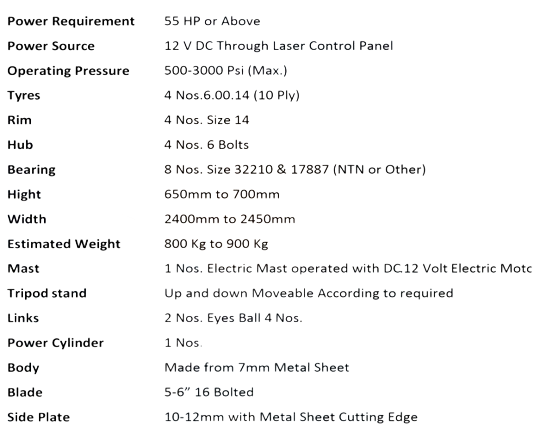

Specifications

Equipments

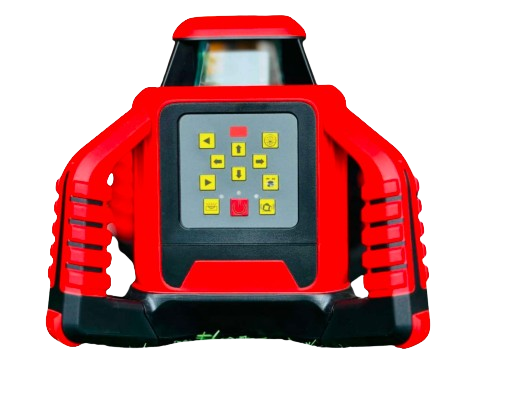

arrow not foundTransmitter

Specifications

  • Compensation range + 10 - 12 arc seconds
  • Protected rotational head with rooter assembly having 500-700 rpm speed capable of uniform 360 degree infrared visible/invisible LASER beam distribution.
  • Fail-safe provision of shut off beam in case unit setting is disturbed.
  • Minimum operating range 1000m (Radius)
  • Power source: Internal
  • Rechargeable battery with charging system capable of at least 15-72 hour of operation per charge with low charge warning light system.
  • External: 12-24 V DC
  • Water and dust proof (Ingress protection Rating IP rating IP 66-68)

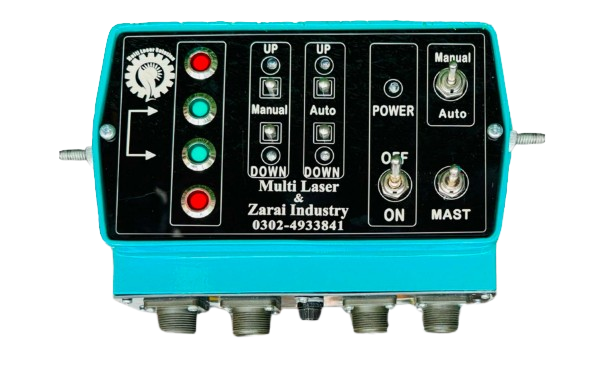

arrow not foundControl Panel Box

Specifications

  • Control: Automatic & manual.
  • Display system: Light indicators for minimum 3 grade position indications.
  • Operational Control: Power on/off indicator, on/off control switch.
  • Auto/manual switch and raise/lower switch Power source: 12-24 V DC.

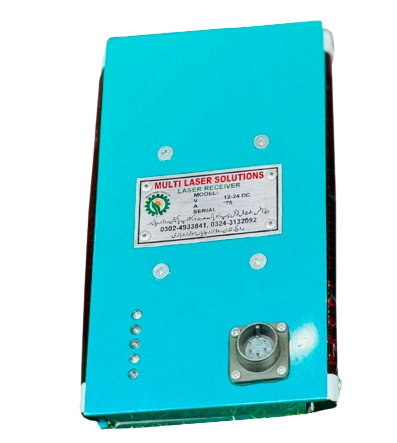

arrow not foundGrade Position Indication

Specifications

  • Grade position indication: Minimum three positions i.e. high, on grade, and low.
  • Sensing range:Vertical 180 to 210 mm
  • Beam detecting angle: 360 degrees Operating range: Minimum 300 m.
  • Accessories: Carrying case
  • Power Source: 12-24 V DC
arrow not foundTripod

Specifications

  • Capable for mounting LASER transmitter
  • Construction: Heavy duty / robust, folding
  • Elevating base: Power on/off indicator, on/off control switch.
  • Height: Minimum 3 meters with LASER transmitter
  • 5-meter adjustable rod with digital sensor
arrow not foundWire Set

Specifications

  • Power Cable: Current Rating: 10 Ampere
  • Insulation: 2 Core/PVC/flex black (56/0.3 mm)
  • Control to receiver cable: Current Rating: 2 Ampere
  • Insulation: 6 Core/PVC/flex black (30/0.25 mm)
  • Control to scraper cable: Current Rating: 6 Ampere
  • Insulation: 3 Core/PVC/flex black (30/0.25 mm)
